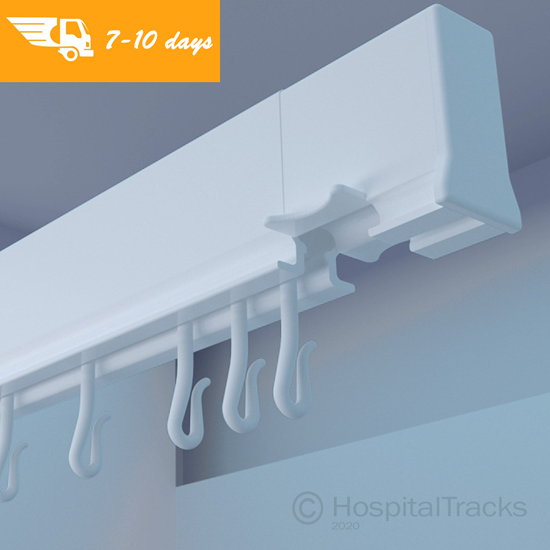

Omnitrack U-Shape

Place your mouse over this image

  • Description
  • Specification
  • Downloads (4)

  •           Unrivalled versatility – accepts disposable curtains with both internal and external gliders

  •           Made to measure tracks to any shape

  •           The only track on the market with no channels,so no dust traps and no rubber capping required

  •           Provides 360°privacy levels

  •           Pushclick curtain removal point for quick and easy curtain changing

  •           The most adaptable track solution on the market, exclusively available from Hospital Tracks

  • Comes in a white powder-coated finish as standard



  • Compatible with Uni-Glide and Universal cubicle curtains



  • Includes Pushclick curtain removal point



  • Made to any size and requirement



  • The most versatile track solution on the market, exclusively available from Hospital Tracks

Omnitrack U-Shape

Product Code:
0527
Price in GBP
£44.97 excl. VAT

    Ceiling Support Recommendations

    This guide outlines the amount of ceiling supports we would recommend using according to the track shape and length.

    You can refer to this guide before making your selections to see the recommended supports and quantities needed.

    Make sure you check the requirements for your track before placing your order.

    Please contact us if you are unsure of which supports you need.

    Straight tracks Straight Tracks

    Track Length Fixing Recommendation
    3m or less Wall-to-wall No ceiling support
    3m - 6m Wall-to-wall 1 x V-Support
    6m + Wall-to-wall 1 x V-Support and Straight Support + additional Straight Support for every 3m
    3m or less One wall only 1 x V-Support
    3m - 6m One wall only 1 x V Support and 1 x Straight Support
    6m + One wall only 1 x V-Support and Straight Support + additional Straight Support for every 3m



    L shape tracks L-Shape Tracks

    Track Length Fixing Recommendation
    3m or less Wall-to-wall 1 x Straight Support
    Over 3m (either length) Wall-to-wall 1 x V-Support
    3m or less One wall only 1 x V- Support and 1 x Straight Support
    Over 3m (either length) One wall only 1 x V-Support and 1 x Straight Support



    U shape tracks U-Shape Tracks

    1 x Straight Support and 1 x V-Support as standard
    U-Shape tracks are always fitted to walls on both ends
    For track lengths over 3m, we would recommend using another Straight Support.

    This guide is our recommendation only. It is the responsibility of our customers to ensure the correct supports and sufficient quantities are selected when ordering.

    • Size
    • 5 chars left.
      5 chars left.
      5 chars left.
      Calculate
      Please enter measurements for all three sides of the track
    • Please select your fixing requirement
    • Ceiling Support fixtures provide extra support from the ceiling for tracks that are mounted to the wall.
Direct Ceiling Plates enables the track to be fitted directly onto the ceiling without being attached to the wall.
    • Wall Fixing Kits
      • 2 Wall Shoe Brackets
      • 2 End Stops
      • 1 End Stop and 1 Wall Shoe Bracket
      • Wall Shoe Bracket+ End Stop + 1 Parallel Bracket
      Please select your wall fixing kit requirements
    • Ceiling Support
      • 1 x Straight and 1x V Support Kit 1000mm
      • 1 x Straight Suspension Kit 1000mm
      • 2 x Straight Suspension Kit 1000mm
      • Straight Suspension Kit 2000mm
      Tracks can be fitted with extra ceiling support in addition to being fixed at the wall.
    • Curtain Gliders

    Prices from: £44.97

    excl. VAT

    Delivery information

    We aim to dispatch orders within 5-7 working days. Please visit our Delivery & Lead Time page for more information.
